Turret Punch Press Machine

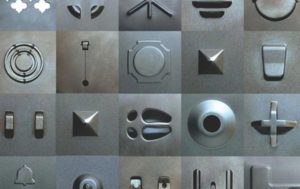

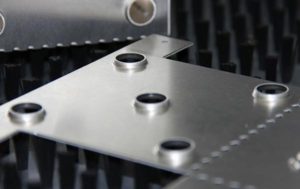

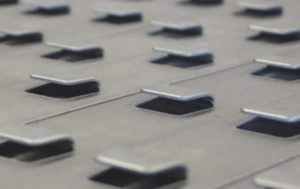

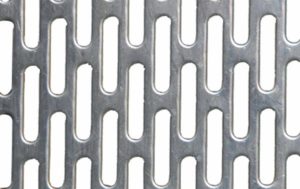

Punching Shapes Out From The Metals

Our CNC turret punch press machine is an automated punching system that is equipped with a high-capacity rack tool and automatic tool changer to complete the machining of parts. It provides the optimal punching solution, contains a large number of tools having different shapes are arranged in the disk rack and moves to perform punching & forming into required output precisely based on the instructions given. It is suitable for the metalworking and manufacturing industry to produce in a wide range of materials such as stainless steel, galvanized steel & aluminum etc. and well suited for high volume production runs.

Model: SMART-SF-20 / SMART-SF-30

Functions & Features

With the several types of tools are mounted on the tool holders on which various kinds of shapes are fit on it to process and the turret moves and rotates & sets the required tool instructed using the software automatically. Ensures the most efficient, high-quality and safe accurate operation.
CNC turret punch press can use tools as much as possible on the sheet at the same time during operation because it is capable of changing the tools automatically. Can determine the number of tools for the same batch during operation with accurate positioning for the unmatched results and performance & superior reliability.

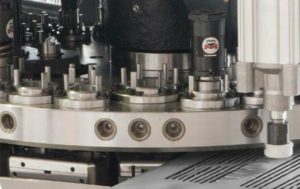

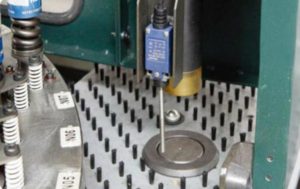

The lifters help to hold it up to change the tool to the next position and the striker assists to punch down on the material to form the desired hole. The thick turret structure has multiple independent punches and dies stations in the single-disc station and takes only a few seconds to change the programmed tool cleverly.

Technical Specification

Item / Model	SMART-SF-20T	SMART-SF-30T
Nominal Force	200 kN	300 kN
Max. Sheet Thickness	4 mm	6 mm
Max. Tool Size	Ø 88.9 mm	Ø 88.9 mm
Max. Sheet Size	1250 X 5000 mm	1250 X 5000 mm
Punching Accuracy	± 0.1 mm	± 0.1 mm
Driving System: Drive Type	Servo V.R.	Servo V.R.
Driving System: Ac Motor Power	16 kW	16 kW
Max. Sheet Weight	100kg	100kg
Max. Marking Rate	1800 h.p.m	1800 h.p.m
Max. Punching Rate (10 mm stroke): 1mm Pitch	1000 h.p.m	1000 h.p.m
Max. Punching Rate (10 mm stroke): 25 mm Pitch	500	500
Max. Feed Rate	110 m/min	110 m/min
Quantity of Rotary Station	32 (2)	32 (2)
Rotary Station: Exchangeable Tool Type	C/D/MT6A/E	---
Rotary Station: Quantity of Secondary Indexing Sub Tools	12	---
Quantity of Control Shaft	6+1(X / Y1 / Y2 / T / C / C1 / A) pcs	5 (X / Y / T / C / A) pcs
Machine Weight	16000 kg	16000 kg
Machine Dimension (LXWXH)	4965 X 5200 X 2110 mm	5940 X 5200 X 2420 mm

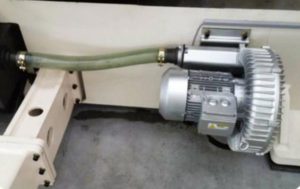

Components of The Machine

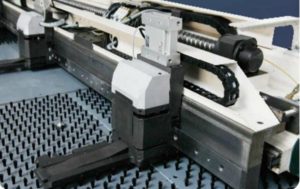

Clamp
The turret punch press machine has automatic clamp positioning capable of accurate positioning and rapid clamping. It reduces errors, setup time and enhances the machine run-time, flexibility and productivity.

Solid Frame Structure
Solid frame structure provides high strength, high rigidity improves the lifetime of the machine, protects from deformation to ensure the proper processing of materials. Built to resist stress and vibrations, the frame stabilizes the machine during cutting or bending operations. This stability supports accurate processing, reduces wear on components and guarantees consistent results even during prolonged production.

Servo Drive Motor
It uses the servo motor with high torque to drive the gearbox that provides high power and speed. This allows the motor to adjust the punch stroke position and achieve the complex curve requirements. Hydraulics provide smooth, controlled punching strokes, delivering consistent force for each operation. The software organizes parts efficiently on the sheet, allowing accurate spacing and alignment.

CAD/CAM Nesting Software
By using the nesting software, can able to nest multiple parts. It maximizes the sheet utilization with less waste, ensures workflow, optimum performance and allows the sheet metals to process easily.

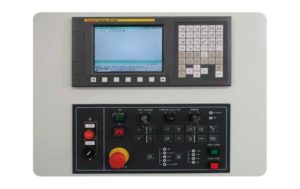

CNC Controller
The FANUC CNC Controller includes realistic operations such as inspection of press head & turntable, spotting the head in the right place and simply converting the programming instructions into tooling motion. The operator can instruct and control it based on the program input easily using a touch panel. It guides the press head and turntable accurately according to the program. Movements are controlled smoothly, ensuring precise bending or cutting while reducing errors and allowing operators to work efficiently with minimal adjustments.

Clamp
The clamp is capable of detecting, setting the position accurately & moving the specific area where the CNC system instructs, used to hold the material to set for the cut and can control by the control board.

Annealed Machine Frame
The frame structure of CNC turret punch press is particularly annealed to have many indexable tool stations, design of versatile configuration tooling to practical reality and protects from deformation. It is prominently known for its improved speed and flexibility that boosts the operation, preserves the accuracy and most cost-effective choice for metal fabrication.

Servo Motor
The servo motor with hydraulic force transfers the driving force to the tools to strongly press down on the material then to return up to complete the punching process. The nesting software with graphical programming method has a simple user interface to nest multiple parts and can give the parameter of shape, diameter, length, & width.
