Plasma Cutting Machine

Quality Cut Edge & Extremely Narrow

The CNC plasma cutting machine F-Series applies the jet of hot plasma cutting approach to process the metals for a wide variety of purposes. Further, the gas overheats to change the state of ionized & electrical conductives and forms the plasma. This energy of plasma transfers to the material to cause the separation of material where the plasma contacts via a nozzle. The nozzle of the machine controls the flow of the plasma gas to produce precise cuts, smooth finishes and reduces the deformation of the products.

Model: F-1530 / F-2040 / F-2060

Functions & Features

The properly functioning automatic arc voltage height control moves closer to increase the nozzle life, cut quality and avoids the sitting time of each part. Once the height controller times out and shuts down, the arc voltage controller takes full control to maintain the proper torch to material distance.
The Integrated downdraft table in plasma cutter is a simple to maintain and effective method for the smoke collection and removal of fumes, debris & particles. While the plasma is cutting the material lies on the table, it disposes the plasma smoke below the plate with high velocity.
The gantry is the carriage that spans the machine and holds the cutting torch provides by the motion therefore the cut process starts. It is connected to the guide rail system to drive the gantry precisely. The planetary gearbox provides high stiffness and lower backlash to improve machining accuracy.
The CAD/CAM nesting software instructs to cut parts from metal plates and also controls the drive systems. It helps to create various complex geometry or any irregular shapes and then translate into a machine language so the CNC can read it to start the process.

Technical Specification

Model	F-1530	F-2040	F-2060
Working Area (WxLxH) mm	1500 x 3000 x 200	2000 x 4000 x 200	2000 x 6000 x 200
Precision Location	0.05mm	0.05mm	0.05mm
Precision Repetition	± 0.005mm	± 0.005mm	± 0.005mm
Control Part	AC Servo Motor / Drive (Made in Germany)	AC Servo Motor / Drive (Made in Germany)	AC Servo Motor / Drive (Made in Germany)
Controller	Power Automation (Made in Germany)	Power Automation (Made in Germany)	Power Automation (Made in Germany)
Power Source	Hypertherm POWERMAX 85 / 105 / 125	Hypertherm POWERMAX 85 / 105 / 125	Hypertherm POWERMAX 85 / 105 / 125
Torch Height Control	IHT Automation (Made in Germany)	IHT Automation (Made in Germany)	IHT Automation (Made in Germany)
Traverse System	Helical Rack and Pinion, Ball Screw, L/M Guide	Helical Rack and Pinion, Ball Screw, L/M Guide	Helical Rack and Pinion, Ball Screw, L/M Guide
Max Traverse Speed	X,Y = 15 m/min	X,Y = 15 m/min	X,Y = 15 m/min
Operating System	PA Software with 15inch Touch Screen LCD Panel	PA Software with 15inch Touch Screen LCD Panel	PA Software with 15inch Touch Screen LCD Panel
Power Source	220 V, 1 Phase (50/60 Hz) / 380 V, 3 Phase	220 V, 1 Phase (50/60 Hz) / 380 V, 3 Phase	220 V, 1 Phase (50/60 Hz) / 380 V, 3 Phase

Components of The Machine

Powermax 85 (Optional)

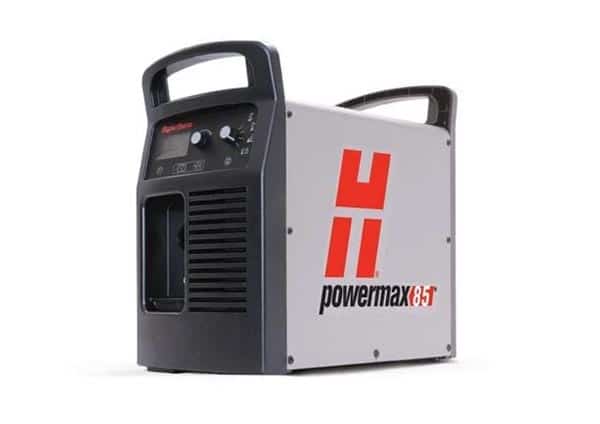

Powermax 85

The Powermax85® has more power about 85 amps for an output current, designed for maximum uptime and productivity. The machine offers the latest smart sense technology is used to adjust the gas pressure automatically and ensures that pressure always sets correctly. The various Duramax torch styles help the operators to select the exact tool to make the job easier by using the same system.

Cutting Parameters:
Mild Steel: 20mm
Stainless Steel: 15mm
Aluminium: 15mm

Powermax 105 / (Optional)

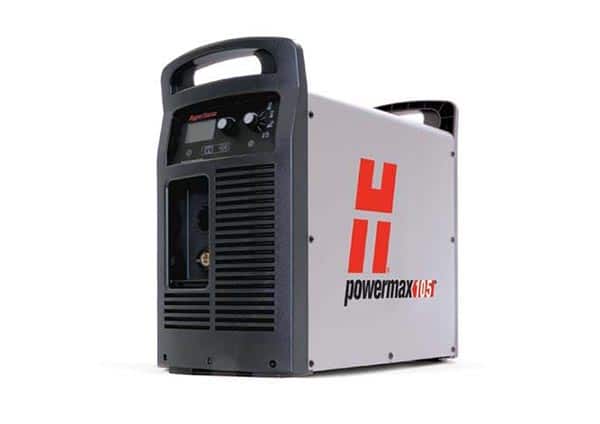

Powermax 105

The Powermax105® plasma system delivers an exact duty cycle & Better performance in cutting capabilities of about 30mm thick metals. High-quality cut & gouge, let us spend less time in grinding and edge preparation. It offers the latest technology of smart sense that adjusts the gas pressure automatically. Seven Duramax torch styles assist the operator for versatility in industrial cutting such as x-y table, hand, portable automation, robotic and gouging jobs.

Cutting Parameters:
Mild Steel: 30mm
Stainless Steel: 20mm
Aluminium: 15mm

Powermax 125/ (Optional)

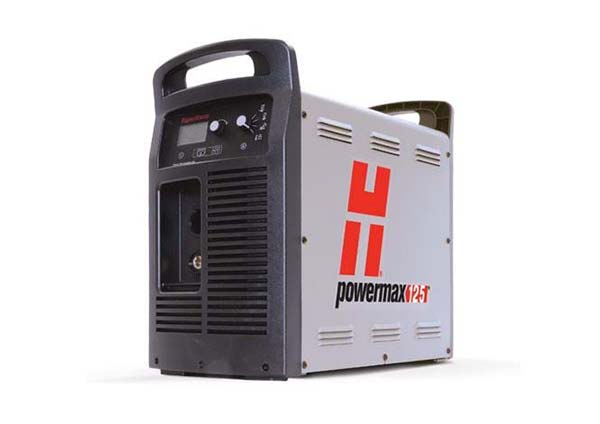

Powermax 125

The Powermax125® plasma system delivers maximum power and performance for air plasma that helps for toughest cutting and gouging jobs fastly. It offers 100% exact duty cycles that maximize the cutting time, fast gouge metal removal and smart sense technology adjust the gas pressure automatically. Eleven Duramax® Hyamp™ torch styles provide the operator with various cutting options such as x-y, hand, portable automation, extended reach, robotic and gouging jobs by using the same system.

Cutting Parameters:
Mild Steel: 35mm
Stainless Steel: 25mm
Aluminium: 25mm
