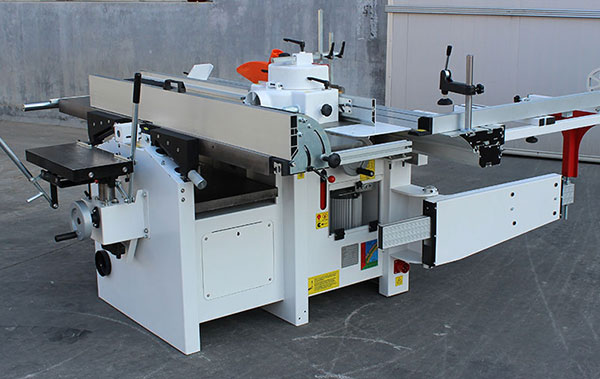

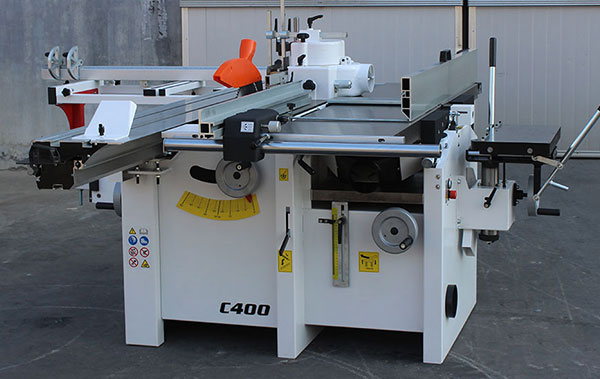

Our 5 functions C400 multi function wood cutting machine serves a diverse range of purposes such as the panel saw, surface planer, thicknesser, spindle moulder and mortiser. The multi-use combination machine is flexible for operating, makes the work easier, has wide processing scope and suitable for various sizes of industries. It is the universal woodworking machine have the advantage of bringing all operations, offers the finest machine technology, maximum stability & rigidity in every working condition, gives a great deal of precision, accurate finish and exceptional performance for the quality finishing.
Model: C400
| Planer | Unit | C400 |
|---|---|---|
| Working tables | mm | 400x1800 |
| Cutterblock diameter | mm | 70 |
| Cutterblock rotation speed | r.p.m | 5700 |
| N. of knives | n° | 3 |
| knives dimensions | mm | 400 x 20 x 3 (400 x 25 x3) |
| Max table adjustement | mm | 4 |
Thicknesser | Unit | C400 |
| Working table | mm | 400x760 |
| Feed speed | m/1' | 7 |
| Max. working height | mm | 220 |
| Min. working height | mm | 4 |
| Cutterblock rotation speed | r.p.m. | 5700 |
| Max. cutting depth | mm | 4 |
Mortiser | Unit | C400 |
| Working table | mm | 250x500 |
| Longitudinal stroke | mm | 205 |
| Trasversal stroke | mm | 95 |
| Vertical stroke | mm | 90 |
| Churck | mm | 16 |
| Churck rotation speed | r.p.m. | 5700 |
Circular saw | Unit | C400 |
| Working table | mm | 326x1112 |
| Shaft rotation speed | r.p.m. | 4500 |
| Blade diameter | mm | 300 |
| Blade bora diameter | mm | 30 |
| Cutting height 90° | mm | 100 |
| Max. distance between blade and fence | mm | 730 |
| Blade inclination | 0° | 45° |
| Max cutting height 45° | mm | 50 |
| Shaft rotation speed engraver | r.p.m. | 7000 |
| Engraver blade diameter | mm | 90 |
| Engraver blade bora diameter | mm | 22 |
Shaper | Unit | C400 |
| Working tables | mm | 326x1112 |
| Shaft rotation speeds | r.p.m. | 2000/3100/4400/7000 |
| Standard shaft diameter | mm | 30 |
| Spindle lenght | mm | 105 |
| Shaft vertical stroke | mm | 115 |
| Max. tool diameter | mm | 180 |
| Max. tenoning depth | mm | 65 |

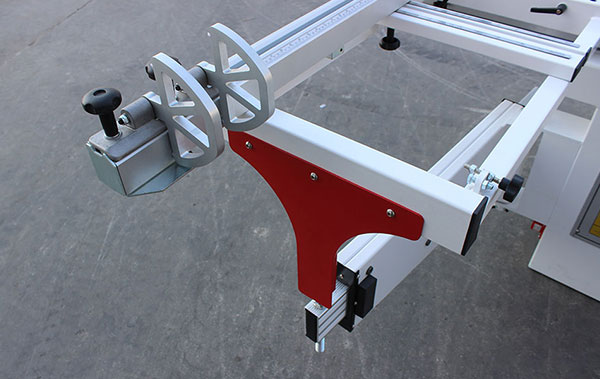

Tenoning Carriage | Unit | C400 |
| Carriage dimensions | mm | 1800x315 |
| Carriage stroke | mm | 1800/2200 |
Standard Accessories | Unit | C400 |
| N°2 clamp lever | - | * |
| Sharper fence | - | * |
| Service wrenches | - | * |
| Mortiser chuck | - | * |
| Table extensions with swinging arms | mm | 860x600 |
| Guards on mortiseur chuck | - | * |
| 3 pcs. planing knives | - | * |
| Planer guide | - | - |
| Saw guide | - | - |
| Bridge sefety hood on planer | - | * |
| 3-phase motor power | HP - KW | 4,0 - 3,0 |
| Weight | kg | 645 |
Optional Accessories | Unit | C400 |
| Single-phase motor | HP - KW | 4,0 - 3,0 |
| Increasing 3-phase motor | HP - KW | 5,5 - 4,0 |
| Set of wheels with feeding steering bar | - | * |
| Wescott(Diameter) | mm | 16 |
| Carriage stroke | mm | 2200/2200 |
| Carriage stroke | mm | 2600/2600 |

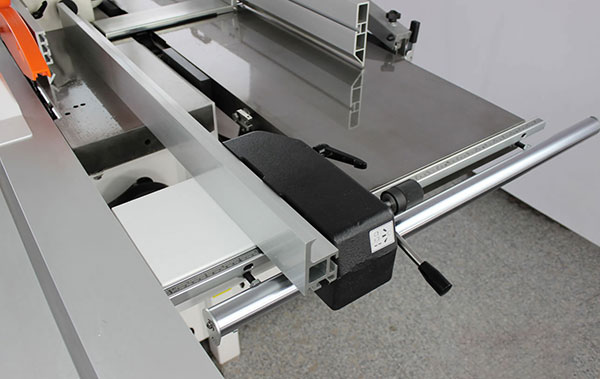

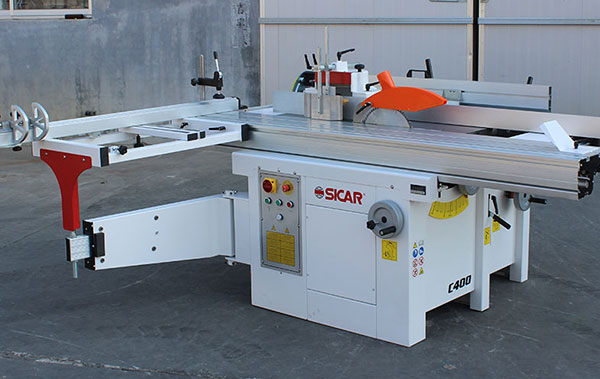

Panel Saw
The panel saw cuts the material and a powerful electric motor drives the blade to process the wood. The main blade can operate as per the various required depth to accommodate varied wood thicknesses to be cut. The scoring blade helps the main blade that scores the material edges and the riving knife acts as a safety measure, separates the wood into two & prevents kickbacks.
Mortiser
It achieves the drilling to shape rectangle, square or circle slots in the wood with a chisel to receive the tenon joint perfectly and can handle a range of mortising tasks. Using a clamp can deliver a perfect depth, hold the workpiece at a specific angle, provides chip-free mortising and avoids slippage of material.

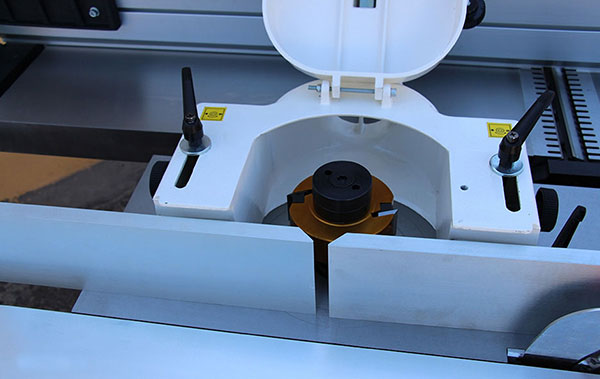

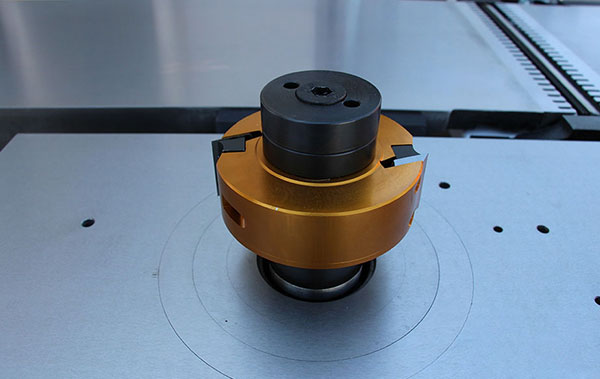

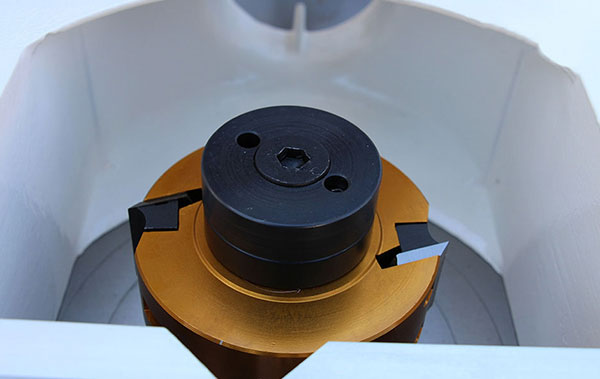

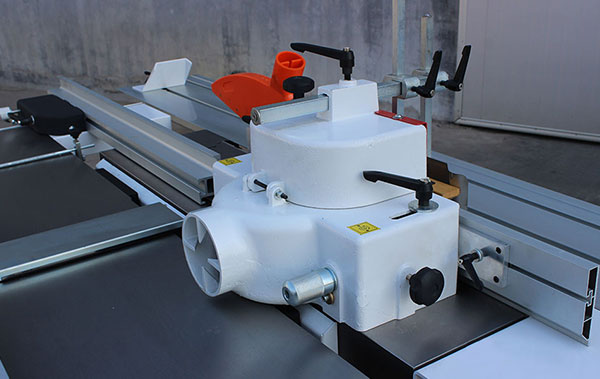

Spindle Moulder
It drives the cutter head to trim or shape the wood for the tenoning with spindle and tenoning carriage. It is offering moulding, rebate, grooving & curved work etc. The measurement for tenoning can be given by a micro-adjustable fence and spindle height is adjustable up to 105mm above the table.

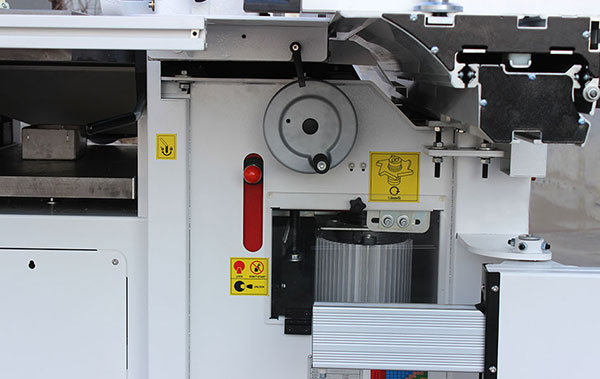

Surface Planer & Thicknesser
In the combined wood cutting machine, a surface planer is used to flatten the upper & lower surface of wood, remove the thickness based on the requirement and make wooden boards with parallel faces. Thicknesser gives consistent thickness & creates proper shape as per specific need, leveling the surface of the wood and producing uniform thickness.
