The digital sublimation printing machine is designed for efficiently converting digital data into physical transfer paper. It offers rapid printing speeds, exceptional precision and ensures that text and graphics are rendered with clarity & detail. This machine has evolved to include advanced features and components such as a printing head, ink supply system, drying system & RIP software. sublimation printing machine enhances productivity, reducing operational costs and precise color calibration. In a digital world, it acts as a bridge and fills the gap between the virtual and physical realms.

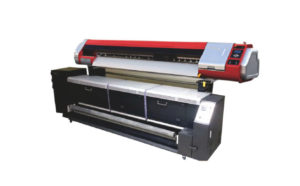

Model: Apsaras G7
| Model | Apsaras G7 |
|---|---|
| Print Head | 16 x Epson I3200 A1 print heads |
| Ink | GS high density sublimation transfer ink certified by OEKO TEX with ''ECO PASSPORT'' |
| Colors Config. | K.C.Y.M |
| Ink Supply System | 15-Liter larger capacity ink tanks |
| Printing Width | Up to 1950mm |
| Media Type | Transfer Paper (30 to 100gsm) |
| Feeder | Feeding: 10000m; Taking up: 3000m |
| Roll Diameter | Up to 1000mm |
| Drying System | 3 x IR Dryers |
| Printing Speed Production | 360x1200dpi - 660m2/h |
| Printing Speed High-res | 720x1200dpi - 325m2/h |
| Data Interface | External: Ethernet; Internal: Fiber Optical |
| Working Environment | Temp.18ºC~30ºC, Humidity:35%~65% |
| Software | Ergosoft + GZ Printer Manager |
| Power | Single phase, 5Hz/AC220V±10%, 25A (Printer) + 48A (IR Dryer) |
| Installed Size | LxWxH(mm): 4240 x 2370 x 1730 |
| N.W. | 1650kgs |
Print Head
The Epson i3200 A1 print head of the sublimation machine gets the ink from the supply system and then vaporizes ink in precise amounts to form the desired image on the substrate. The process repeats rapidly as the head moves on the media and ensures proper ink deposition.
Ink Supply System
The bulk ink supply system of the sublimation printing machine holds a larger ink tank volume of 15L which reduces the frequency of refilling. It provides uninterrupted printing, higher output capacities and enhances productivity in digital printing. The subsequent cartridges replenish the ink without stopping operation.
Drying System
The three infrared heater cures the ink to provide high durability and long-lasting prints. Each heater operates at a specific temperature, optimizing ink adhesion, dries the printed media, preventing smudging and giving color vibrancy. It results in efficient and professional finished output. Maintains thermal control throughout the printing process to enhance the surface finish. Allows for fine temperature adjustments at every stage with proper heat management to improve ink penetration.
Piezo Variable Dot
Piezo variable dot technology creates pressure that ejects tiny ink droplets to the head for printing. The size of the droplet can be controlled precisely and allows for different drop sizes. It enables fine details & gradients and results in high-quality print with variable dot densities. Effective usage of ink by utilizing only the required droplet volume of ink for the operation. The precise placement improves edge sharpness, protects ink properties and gives consistent color density.
RIP Software
Ergosoft RIP software with GZ printer manager supports various file formats and translates it for machine understandable format. It manages job scheduling, customizes print settings, including color adjustments and layout. Provides advanced color management, efficient job queuing and precise calibration for consistent print output. This seamless integration allows real-time monitoring to take control of printing operations.
