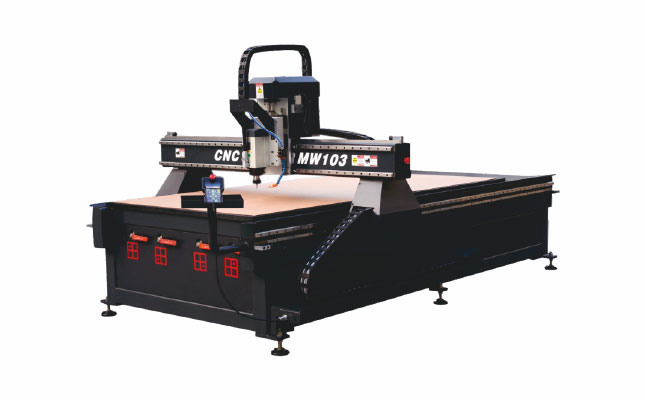

The CNC router machine that routs the materials by using computer numerical control cuts various shapes in different materials for industrial purposes and has the ability to replicate the same product with perfection. It is used to cut, dadoes & rabbets to make intricate shapes in a range of materials such as acrylic, plastic, MDF, aluminum, wood etc and compatible with various hard materials. The main functions of the CNC router machine are milling drilling & cutting the materials and carving in the workpiece with reduced output errors. Its production capabilities make the product cost-efficient for businesses.
Model: MW-1325 / MW-1530
| Model | MW-1352 | MW-1530 |
|---|---|---|
| Spindle | HSD 6 HP ER32 | HSD 6 HP ER32 |
| Inverter | iBESTCH | iBESTCH |
| Max. Width | 1270mm | 1500mm |
| Max. Length | 2540mm | 3000mm |
| Z Clearance | 150 mm (Max.) | 150 mm (Max.) |
| Table | T-Slot | T-Slot |
| ATC | Optional | Optional |
| Controller | Nk105 controller | Nk105 controller |
| Max. Weight | 80 Kg / sqm on bearings | 80 Kg / sqm on bearings |
| Cutting Material | Acrylic, Plastic, MDF, Aluminum, Wood, Brass, Copper | Acrylic, Plastic, MDF, Aluminum, Wood, Brass, Copper |
| Axis | 4 | 4 |
| Spindle Speed | 18000 rpm | 18000 rpm |
| Spindle Cooler | Fan / Air Cooled | Fan / Air Cooled |
| Speed | 20 - 30 m/min | 20 - 30 m/min |
| Axis Motor | Stepper motor and small electrical case | Stepper motor and small electrical case |
| Brush Feet | Yes | Yes |
| Dust Cover | Yes | Yes |
| Print Interface | USB 2.0 + Networking | USB 2.0 + Networking |
| Power Specification | AC 220 V 4.5KW | AC 220 V 4.5KW |
| Operational Environment | Temperature: 20°C - 30°C Humidly: 20% to 80% | Temperature: 20°C - 30°C Humidly: 20% to 80% |
| Software | ArtCAM / EnRoute / Type 3 | ArtCAM / EnRoute / Type 3 |
| Dimension & Weight Machine | L3765 x W1760 x H220mm 1.5 Ton | L3765 x W1760 x H220mm 1.5 Ton |
| Dimension & Weight Package | L3900 x W1900 x H1350mm 1.6 Ton | L3900 x W1900 x H1350mm 1.6 Ton |
iBESTCN Inverter
It is a powerful energy storage system, controls the frequency of spindle motor, provides super overload capacity, a rich combination of functions and is suitable for dynamic characteristics. This energy controller manages the motor frequency and overload capacity, keeping operations stable even under demanding conditions and allowing the machine to handle sudden load changes without interruption.
Bearing Guide Rail
It guides the machine to move the path of movement on linear motion and provides the right amount of friction to travel freely. Gives the high-precision, long service lives and decreases backlash. The controlled movement allows the machine to handle each operation smoothly, even under continuous use. Its design reduces wear on components and ensures consistent motion, making setup and adjustments easier for operators.
Stepper Drive & Motor
Stepper motor provides full torque, a precise rotational angle that is proportional to the input pulse, accurate repeatability of movement, minimizes the mechanical failure & maximizes the lifespan of the motor. Designed for reliable performance, the motor keeps the machine running efficiently day after day. It reduces downtime, requires less maintenance and allows operators to focus on production, making it a smart choice for businesses.
Nk105 Controller & Remote
It assists to direct the cutting instructions by electronic signals along with a computer works together to command the functions. The controller moves the drive system to perform the operation precisely.
CAD/CAM Software
The CAD/CAM transfers the set of design instruction files to the machine, generates geometric codes then sends them to the controller to start the process. After the feeding of the visual programming tool, the geometric code controls the basic movement and direction of the gantry head.
