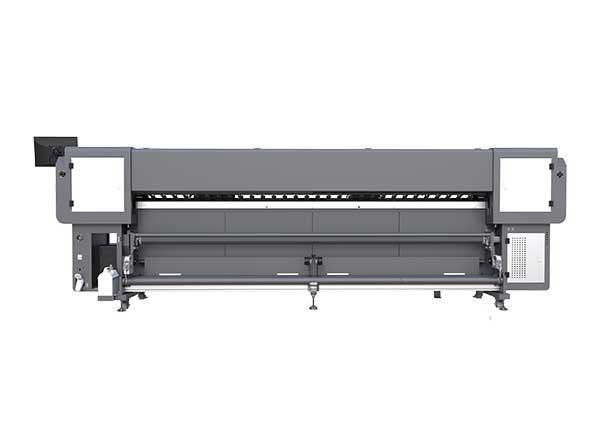

Large Format Printer

Makes The Huge Impact On Printing

Our large format printer 3.2 meter starfire makes the possible large space to advertise the products, business & services and therefore they are high in demand all the times indeed. Many businesses have been using this machine because of its high visibility of the output including text, images and graphics with advanced color management software because it plays a major role in transferring the brand message and standard. It comes up with various features such as a cost-effective printing tool, long-lasting printing, creates less waste, makes a quite fast operation and offers multiple printing options to meet all the specific business needs

Model: GZM3204SG (10PL)

Functions & Features

The negative pressure recirculation system effectively uses the ink drops by taking the unused ink back to the printhead and the recirculation prevents the nozzle dry due to evaporative loss. It filters out any blocking particles or air bubbles from the head introduced by the nozzles therefore resulting in improved print quality.
In large format printer, the intelligent IR drying system has pre, mid, post & extended heaters that dry the inks on the media instantly after the printing hence shortening the drying time. It produces a vibrant finish with a high degree of opacity, smoother gradations, vivid colors, sharp images and maintains the exact print details.
The latest Panasonic A6 servo system is highly compatible, delivers high power for performance and has precise motion control. The super-strong heavy-duty body, aluminum beam and beam holders take on any challenging operation and result with only exceptional vivid prints that stand out every time.
It has the ability to produce high-quality images, greater control & flexibility, remains the same quality even withstands continuous exposure without fading in different kinds of weather conditions and saves significant time & money.

Technical Specification

Model	GZM3204SG (10PL)
Printhead	4 Starfire 1024 10PL/25PL with safety protection system
Ink	CMYK Solvent / Eco Solvent
Ink supply system	GnTek Negative Pressure Recirculation System
Printing width	Max. 3200mm
Media type	Banner, Frontlit, Backlit, Vinyl, Film...
Media delivery system	Automatic media feeding and taking up system with pneumatic shaft
Drying system	Pre, mid, post and extended heater plus intelligent QT drying system
Printing speed	300 x 400 dpi 234 m2/ h
Printing speed	600 X 400 dpi 209 m2/ h
Printing speed	300 X 600 dpi 163 m2/ h
Printing speed	600 X 600 dpi 146 m2/ h
Printing speed	300 X 800 dpi 127 m2/ h
Printing speed	600 X 800 dpi 112 m2/ h
Data interface	External: USB2.0; Internal: High-speed SCSI
Working environment	Temp. 23°C ~ 29°C , Humidity: 50% ~80%
Software	Photo Print (Latest Version), Onyx + GZ control console
Power	50Hz/AC,220V+10% 13A(printer)+18Ax2(QT drying system)
Printer / package size	LXWXH(mm): 4660 X 960 X 1250 / 4930 X 1150 X 1690
G . W. / N . W.	1335kgs / 1035kgs

Major Components

Starfire-Head

GnTek Recirculation

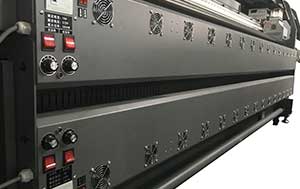

IR drying system

Magnetic encoder

Taking up System

Separate taking up

Components of The Machine

Dimatix Printhead
The dimatix 4 Starfire printhead with a safety protection system, ranging the quality mode of 1200 dpi and maximum 25pl helps to meet the wide range of applications fast and lowers price points by shortening the operation time and many more reasons.

Redijet Recirculation
The redijet recirculation technology unlocks the full productive potential of the head through its continuous ink recirculation, has greater reliability and allows for fast printing. It continuously circulates ink, preventing clogs, provides consistent ink flow and superior print quality. By minimizing ink waste, it lowers operational expenses with seamless digital printing performance.

Onyx / PhotoPrint
The RIP software can interact intuitively for the programming without any difficulty, less set-up time, effective execution of jobs in a single print run and precise file positioning on a specific media. The efficient nesting promotes batch processing capabilities supports a wide range of file formats. Helps to result in accurate color reproduction, consistent high-quality output and allows stable data transfer.

Height Detects
Auto-height detects the thickness of the material to fix the print head accurately on the top of the material. Accurate head positioning protects the print head from damage. Automatic adjustment ensures consistent dot placement across different media types. The ink purge system cleans the nozzle, avoids clogged nozzles, optimized for the best performance and longevity of print heads. Removes dried ink and air bubbles which extends print head lifespan.

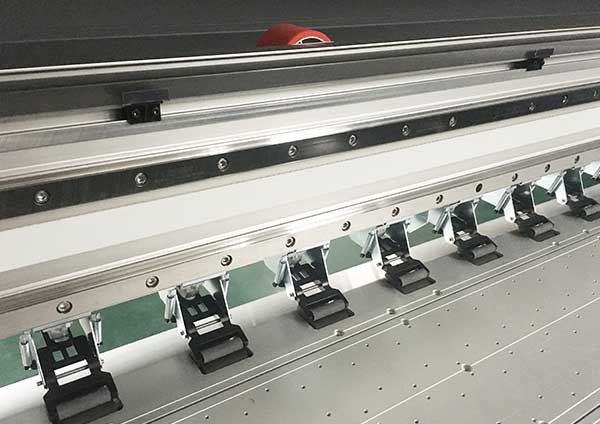

Feeding System
Automated take-up & feeding system synchronized with tension bars attend the long print runs on various media, ensures the consistent handling of material, uninterrupted supply of media and adjusts automatically based on the media being used. Maintains uniform media tension throughout the printing process and supports different roll sizes and material types at high speeds. Reduces the manual adjustments and is suitable for high-volume industrial & commercial applications.

Anti-crash System
A large format printer has a real-time automated anti-crash system thereby decreasing the wastage of media and stopping the operation immediately when misprints or faces any other problem that ultimately reduces the missed printing without any notice.
