The digital fabric printer 1.8 meter is using Epson DX5/DX7 heads with 4 colors CMYK having higher resolution, extreme printing speed and suitable to print on the media polyester. The digital printing process offers more precision & accuracy, can give exact design, pattern & color variation, wide color gamut, colorful delicate images, shortens the printing time, improves the cycle of processing and faster lead-time for order fulfillment. It has greater customization, enables very fine productional output that is identical to the on-screen computer image and ensures an endless variety of designs, images & graphics.
Model: BPI-1800
| Model | BPI-1800 |
|---|---|
| Print Head | Two Epson DX5 / DX7 with safety protection system |
| Printing Method | PIEZO Inkjet |
| Printing Color | 4 color (Cyan, Magenta, Yellow, Black) |
| Print Head Height Control | 1.5mm 12.5mm Low/High |
| Print Speed Resolution | 540x360dpi/3pass --- 720x720dpi/6pass |
| Print Speed Speed | 27 m2/h --- 20 m'/h |
| Maximum Resolution | 1440dpi |
| Media Size | Maximum Media Thickness: 1.0mm(0.039in.) |
| Media Diameter | 2inch or 3inch |
| Max. weight for roll media | 30-80kg (optional) |

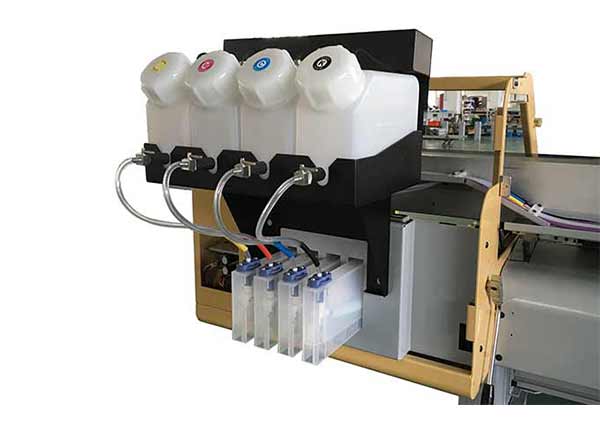

| Ink Feeding System | Cartridge (220m1 per Color) |
| Printing Precision Level | ±0.3% or 0.3mm |
| Head Cleaning | Automatic and/or Manual |
| Interface | Ethernet 10 Base-T |
| Weight | 580kg |
| Operational | Power on-Temperature: 16-24°/Humidity:40-65% / Power off-Temperature:10-30°/Humidity:20-60% |
| Power Resource | Direct dye sublimation heater:AC220V, 1phase+N+PE, 16A, 50/60Hz |
| Dimension | 2998mm(W) x 886mm(D) x1262mm(H) |
| Operational Environment | Temperature 10°C - 32°C Humidity 20%-80% |
| Ink type | Disperse dye ink (Sublimation ink) |
| Media type | Polyester |
Epson Printhead
The Epson print head with a safety protection system, the maximum ink droplet of 3.5pl for a better printing effect, extremely low cost in terms of ink efficiency and gives more prints that make less worried about replacing your ink often. Its advanced nozzle structure assists in continuous printing environments. The safety protection system safeguards the print head from damage. Maintains consistent color output, gives smooth gradients and extends service life.
PhotoPrint
In a digital fabric printer, the RIP software helps to maintain the consistent printing quality and produces output from the design file by graphics software. It has the ability to control material waste, lower ink usage costs, improve the workflow and modernize the operating process.
Anti-crash System

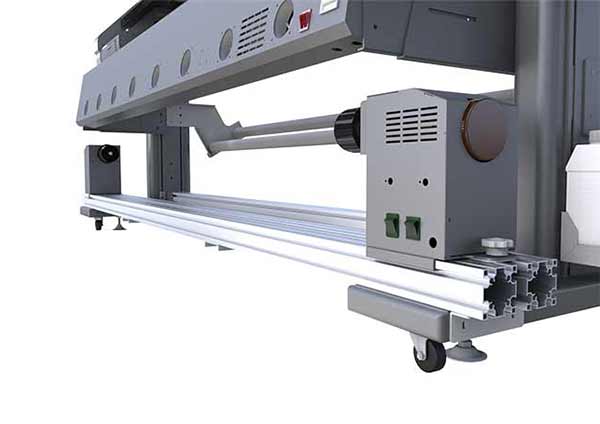

A digital fabric printer has an automatic anti-crash system. keeps a delicate distance between the print head and the media to avoid an unwanted collision that leads to a high loss of material. The standard automatic taking-up system can convey the media perfectly into the machine for the proper printing without having any stuck on it. It is monitoring the media surface continuously and automatically adjusts the print head height. Avoids the risk of head damage, gives stable head movement and is useful for uninterrupted printing for long runs.
Evolved Technology
This evolved technology is the greatest option, computer-controlled to transfer the input in a digital file to media, takes the business sky-high, flexible for small, medium & full fabric industry and brings a load of profit in a short time. This on-demand printing gives quick turnaround and customization for the complex prints. It is reducing the production waste, lower operating costs, reducing labor dependency and profitable in a dynamic market.
We will respond quickly to your valuable inquiry for clear understanding and offering services round the clock across various geographical locations!
