The large format hybrid printer machine represents a leap forward in the signage industry with digital printing technology. By sidestepping from the conventional processes, it converts the digital file designs onto diverse substrates such as flexible media, rigid media, ceiling film, vinyl, backlit, frontlit, banner, PVC, aluminum sheet and wood etc. This equipment accelerates processing while maintaining impeccable output quality. In an era of customization design requirements, the digital printing machine offers a versatile solution for businesses seeking to make the top mark in the market.
Model: GZF6650KM
| Model | GZF6650KM |
|---|---|
| Print Head | 4~40 Konica 1024i / Konica 1024a print heads |
| Head Config. | 6xKCMY |
| Head Config. | 6xW+6xKCMY |
| Head Config. | 6xKCMYKLcLm |
| Head Config. | 4xWK+6xKCMYLcLm |
| Curing System | Dual water cooling LED UV curing lamps |
| Ink | UV curable ink |
| Colors | Standard: CMYKLcLm, Optional: W |
| Ink Supply System | Negative pressure system + white ink stirring & recirculation system |
| Ink Tank | 4000ml |
| Cleaning System | Positive purging system |
| Servo System | Linear motor and metal encoder |
| Media Type | Flexible Media: Ceiling film, Frontlit, Backlit, Banner, Fabric, Wallpaper, Leather, etc; |

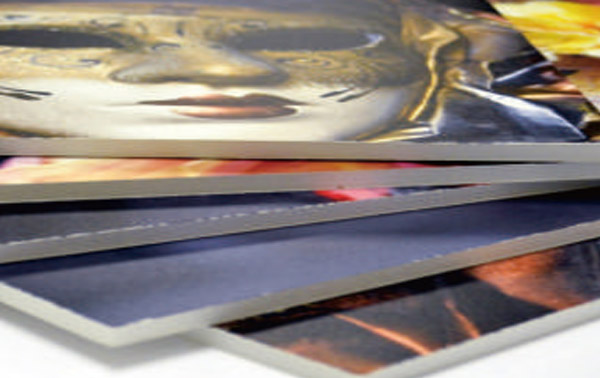

| Media Type | Rigid: Media: PVC board, Foam board, Corrugated paper, Aluminum sheet, Wood, etc. |
| Media Thickness | Max.50mm |
| Printing Width | Max.6600mm |
| Printing Speed Konica 1024i | Resolution - 2xKCMY |
| Printing Speed Production | 508x1080dpi - 85m2/h |
| Printing Speed Quality | 508x1440dpi - 46m2/h |
| Printing Speed Hi-precision | 508x1440dpi - 35m2/h |
| Data Interface | External: USB 3.0; Internal: Fiber Optical |
| Working Environment | Temp.20ºC~28ºC, Humidity:40%~70% |
| Software | FlexiPRINT UV Edition + GZ Printer Manager |
| Power | Single phase, 50/60Hz, AC220V±10%, 34A |
| Installed Size | 10050 x 1925 x 1900mm |
| N.W. | 5200kgs |
Print head
The hybrid printer is fitted with a Konica 1024i/1024a which plays a pivotal role in the printing process. It has the responsibility of releasing ink droplets onto the media substrate. Improves the final print output, color accuracy and image sharpness.
Curing system
A large format hybrid printer has dual water cooling LED UV lamps as a curing system that efficiently cures inks by using dual lamps, enhancing printing speed and quality. The water cooling mechanism prevents overheating and maintains consistent output. It assists in delivering faster while prioritizing energy efficiency.
Negative Pressure System
The negative pressure system is useful in maintaining a controlled vacuum within the ink delivery system. It prevents air bubbles and provides consistent ink flow to the print head. The white ink stirring and circulation system maintains uniform distribution and prevention of clogging.
Linear Motor & Metal Encoder
Equipped with linear motor and metal encoder significantly provides accurate print head movements. This dynamic combination minimizes the vibrations, accelerates the printing speeds, sharpens output and lowers the processing noise level.
RIP Software
Using the FlexiPRINT with GZ printer manager as RIP software translates any image files into a format that the machine can understand and reproduce the output accurately. It allows adjustment of image settings and managing printing queues. It supports various file formats resulting in consistent and vibrant prints in modern digital printing workflows.
