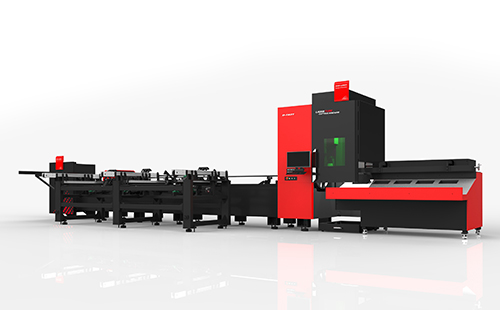

Tube Laser Cutting Machine Semi Automatic

Helps To Meet The High-end Demands

The tube laser cutting machine semi automatic is equipped with different laser powers of 1000W to 3000W for cutting the tubes, pipes & profiles for the materials such as stainless steel, carbon steel, aluminum alloy and other metal tubes. It is enabled with powerful cutting capacities, excellent motion performance, enhances overall production ability and high-power laser generators to meet the industry requirements. The imported fiber laser source generates a high-density laser beam for efficient cutting and emits deeper focal depths on the material.

Laser Power: 1000W – 3000W

Functions & Features

The pneumatic chuck has an automatic centering system and can easily clamp the materials such as a square tube, round tube, elliptical tube, flat tube, triangular tube, I-beam & other materials. It has a front & rear chuck that holds the material with accurate clamping force and adjusts accordingly to the various tube diameters & wall thicknesses.

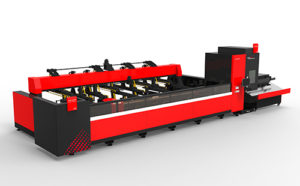

The tube laser cutting machine semi-automatic loading system can feed the raw material up to 800kg, adjust the workpiece in the chuck and the blanking clamp device helps to hold the wide of the tube accurately which improves the cutting accuracy. The auto-focus laser head produces a precise cut and calculates the focal length to emit the laser beam.
The cooling system has dual temperature auto-tracking to detect the thermal affection and also has an overheat alarm system as protection to indicate it. The dust extraction device does entirely automatic cleaning every time, avoids a polluted environment and provides flawless metal cutting.
These automated functions ease the operation along with intelligent monitoring function with improved machining efficiency. It has an extensive range of capabilities to make profile cutting and ideal for a variety of applications. The fiber laser beam size with its much smaller wavelength gives the ability to cut intricate shapes & sharp edges and offer a perfect surface finish.

Technical Specification

Model	D-FAST_FCCDG_GZ_
Laser Source	Imported original fiber laser sources (optional)
Laser Power	1000W 2000W 3000W (optional)
Materials Type	Stainless steel, Carbon steel and other material tubes in round, square, rectangular, angel steel, “U” shape, “I” shape, other special
Cutting speed	Depending on the material and its thickness
Length of Tube	3000mm, 6000mm (Optional)
Cutting Size	Tubes φ15-220mm,Square tubes 15×15-150×150mm
Positioning Accuracy of Axes X & Y	±0.05mm
Repositioning Accuracy of Axes X & Y	±0.03mm/1000mm
Maximum Positioning Speed of Axes X & Y	240 Round/Min
Working Stroke of Axes A1 & A2	N×360°
Positioning Accuracy of Axes A1 & A2	±0.05º
Repositioning Accuracy of Rotation Axis U	≤5 Arc
Power Supply	380V/50Hz/60Hz/60A
Footprint Size	9000x5000mm as per the working stroke of 1500x3000mm

Stability 95%

Cutting Accuracy 99.99%

Durability 97%

Major Components

DNE Bsytronic Head

Bystronic (Swiss)

Fiber Laser Source

IPG (Germany)

Servo Motors & Drives

Schnieder (France)

Hellical Rack & Gear

WMH (Switzerland)

Planetary Gearbox

Neugart (Germany)

Components of The Machine

Reducer
It can manage the huge torque, runs the machine at the required speed, assures smoother operation, low backlash, long performing life and needs low maintenance.

Servo Motor
It drives the mechanical components of the machine, controls the speed & position, produces the constant torque and achieves perfect output.

Pipe Cutting System
In a tube laser cutting machine, the numerical control pipe nesting & cutting software operates by simple programming procedure, guides the machine tools, inputs the cutting instructions and outputs the complex parts.

Nesting Software
Tube laser cutting machine has nesting software that is used to simplify the cutting instructions given to the machine and utilizes the raw material effectively. It can nest the shapes quickly for the processing & computes them for real-time automation, less perforation time and supports many graphics file formats.

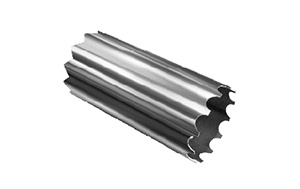

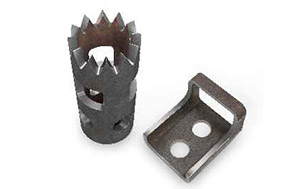

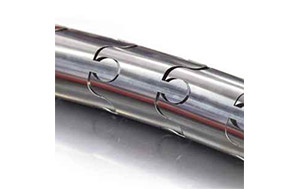

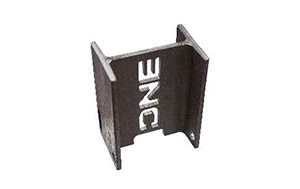

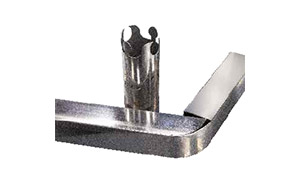

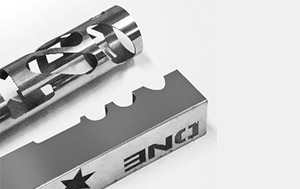

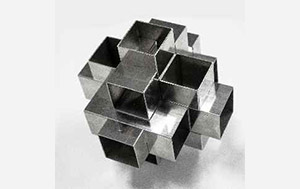

End Products
