Metal Laser Welding Machine
Suitable For A Range Of Materials
The handheld metal laser welding machine is new generation welding equipment that belongs to non-contact operation. This process doesn’t require pressure and it works by high-energy intensity laser beam on the workpiece surface. Then the material is melted inside, cooled and crystallized to form the weld via laser interaction. It combines the fundamental quality of an ultra-portable device to weld with unparalleled performance. This powerful welding leaves no defects with outputs in the material such as stainless steel, carbon steel, aluminum & copper etc.
Model: FL-500 / FL-1000 / FL-1500 / FL-2000
Functions & Features
- The standard 10 meter handheld swing fiber laser welding gun can handle by operators easily and avoids the restriction to travel. It helps for simple operation, beautiful welding seam, fast welding speed, easy machining setup and using fewer consumables.

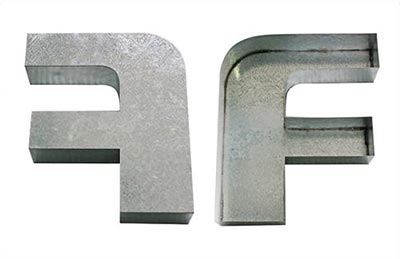

- In metal laser welding machine, varieties of welding options are available to produce various welded workpieces and irregular welding shapes also possible. The higher energy density achieves a better welding effect, not easy to deform and does not need to be polished by secondary processing because it ends up with a smooth welding surface.

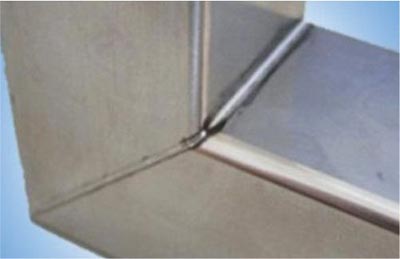

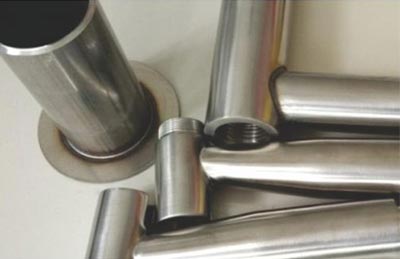

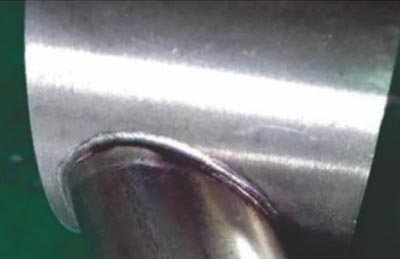

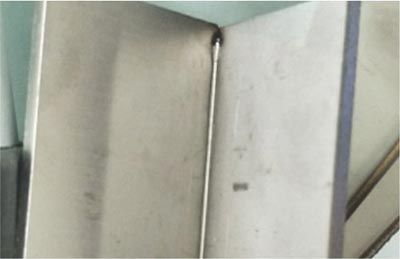

- The target welding spot is aimed by red light indicator precisely, fixes the exact position to process, helps the laser radiation to heat up the surface accurately, peaks for greater welding quality and finishing capability. It handles typically complex operations such as docking weld, stack weld, inside & outside corner weld, point weld and tube weld etc.
Technical Specification
Model | FL-500 / FL-1000 / FL-1500 / FL-2000 |
|---|---|
| Laser Power | 500W / 1000W / 1500W / 2000W |
| Laser Wavelength | 1070nm±5% |
| Power | Single-Phase 220V±5%, 50Hz (0.5 - 1kw) / Three-Phase 380V±5%, 50Hz (1.5 - 2kw) |
| Fiber Wire Length | 10M / Standard 10M |
| Aiming Positioning | Red light Indicator + Fixture |
| Control Model | TTL Leve/GUI |
| Cooling System | Integrated Thermostat |
| Welding Speed | 0~120mm/sec |
| Welding Thickness | 0.5 - 2.0mm (0.5-1kw) 0.5 - 5.0mm (1.5-2kw) |
| Welding Gap | ?0.2mm |
| Temperature | 15 to 35o |
| Humidity | <70 No condensation |
| Consumables | Protective Lens |
| Power | 2.0~3.5 KW |
| Size (LxWxH) | 1200x500x1000mm |
| Weight | 150kg |
Components of The Machine

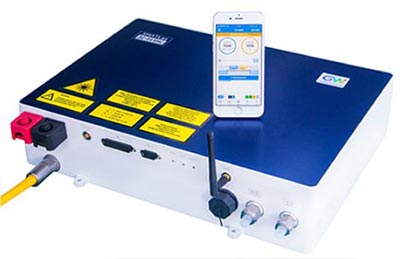

The laser power source generates up to 2000W and utilizes a beam as the energy source to attain the welding purposes with excellent efficiency, quick welding speed of 120mm per second, no contortion or distortion, no subsequent processing and has an important function in applying extremely massive production.
A metal laser welding machine is integrated with the thermostat cooling system to control the temperature and produces rapid cooling for the welded product to strengthen the material. It has high specific heat transferring capacity that avoids the problem of overheating and this function is vital for optimal welding performance.
The highly precise control panel has a human-friendly interface and acts as a communicator between material & the machine. It has the function to feed the operational instructions such as welding power, aiming position and welding gap etc.
