Co2 Laser Engraving Machine

Extremely Safe Laser Cutting

Our Co2 laser engraving machine adopts the Co2 laser technology and largely used for engraving, cutting, marking & itching. It has high energy conversion efficiency, good stability and almost can process any non-metallic materials. It will not damage the processing surface or deform the material, fast operational speed while input of the design to the computer to operate and convenient for batch production. The operations are laser cutting that is used to cut an entire shape or section out in the material, engraving is done by vaporizing the surface of the material.

Model: MW-1325

Functions & Features

The laser type called CO2 glass laser tube helps to emit high voltage output power density to cut various thicknesses and ensures high precise end-product structure. The light beam strikes the exact light spot to create the clear marking or engraving.
The Co2 laser engraving machine has a constant temperature water cooling & protection system, designed to cool the laser tube and take away the thermal energy generated from the process for effective output. Makes a greater degree of components, less maintenance and prevents the equipment from overheating.
It is equipped with a honeycomb working table with about 1300mm x 900mm cutting area, a high-strength frame structure that effectively improved the response for marking precision to make the operation stable. It can hold various sizes & shapes of material for processing and ensures high supporting performance.

Technical Specification

Model	BPI-1325
Laser-Type	Sealed CO2 laser tube
Laser Power	60W 8OW 100W 130W 150W (Optimal)
Cutting Area	1300mm x2500mm
Whole Machine Size	30001600990mm
Cutting Speed	0 -24000mmlmin
Resetting Positioning Accuracy	0.1mm
Working Voltage	AC 110-2200V 10%,50 60Hz
Gross Power	<1,500W
Operating Temperature	0-45t
Operating Humidity	5-95%
Minimum Shaping Character	English 1x1 mm
Graphic Format Supported	BMP, PLT, DST, DXP, XP and Al
Driving System	stepper
Cooling Mode	Water-cooling and protection system
Auxiliary Equipments	Exhaust-fans, air-exhaust pipe
Controlling Software	DSP control system
Compatible Software	CorelDraw AutoCAD Photoshop

Major Components

Motor

Cooling Chiller

Air Pump

Controller

Components of The Machine

The CO2 glass laser tube produces light that is extremely powerful and passes through the gas-filled tube with mirrors & lens at both ends. It focuses on the material to meet the requirement and supports with high transmittance, finds an exact light spot and non-contact process that makes minimal damage to the material.

The linear guide drives the optical path along with the light source for the smooth operation at high speed and ensures linear motion. The motor is used for accurate positioning, moving by the required amount of degree and suitable with computer-controlled systems.

Co2 laser engraving machine supports designing software such as CorelDraw, AutoCAD & Adobe illustrator and can maintain the laser adjustments for better output effects. It gives an error-free process, can control the cutting parameter and imports in various graphic formats BMP, PLT, DST, DXP & AI. It leave a visible mark with a required depth, etching defines as that makes extremely shallow cuts and the laser marking means typically creates a permanent mark on the object for traceability purpose.

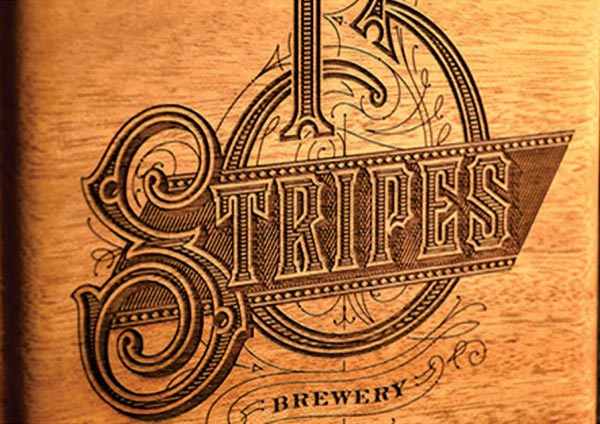

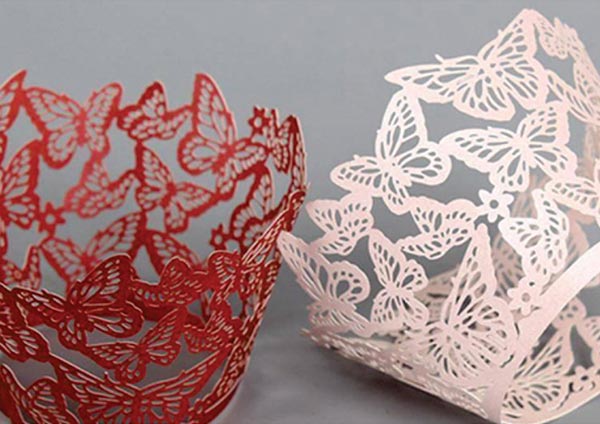

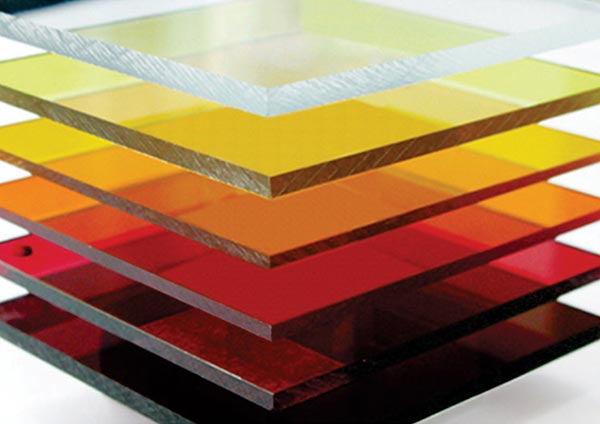

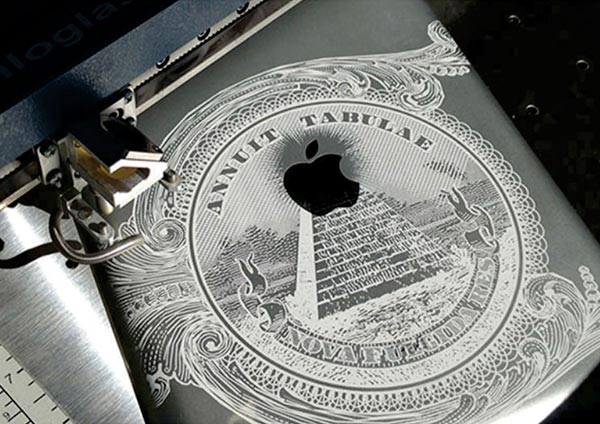

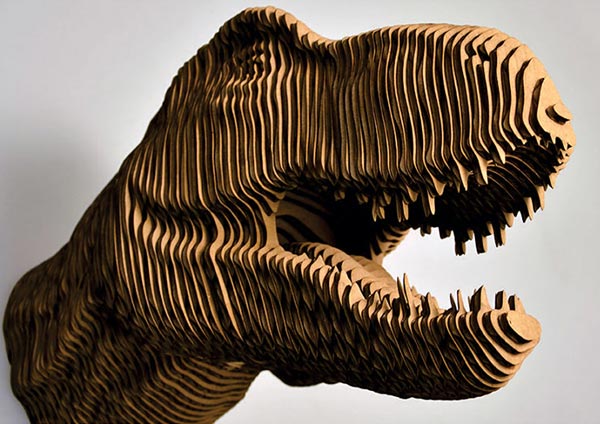

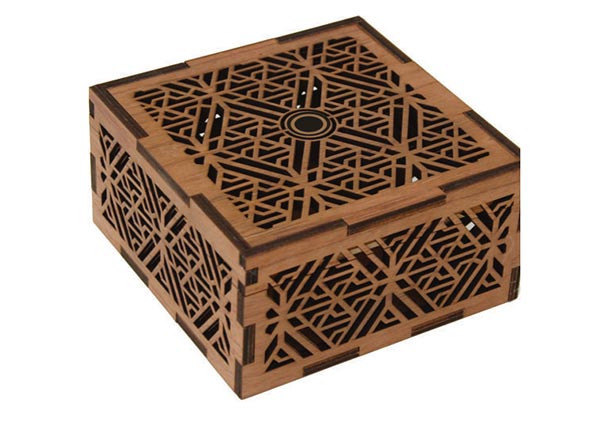

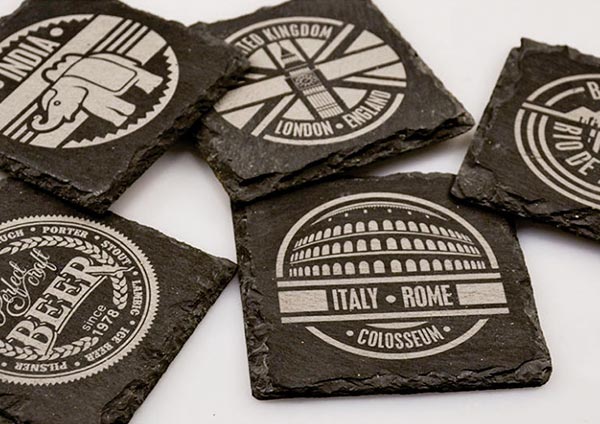

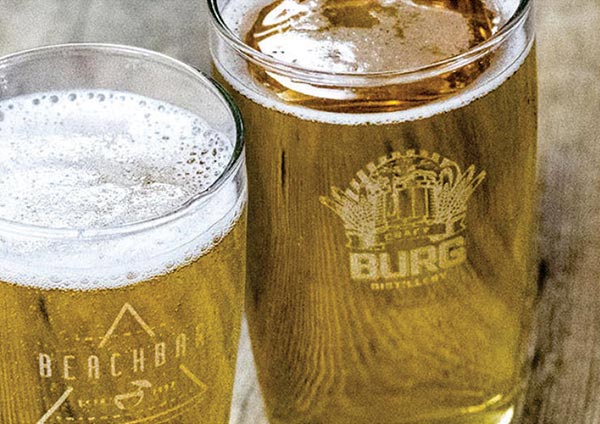

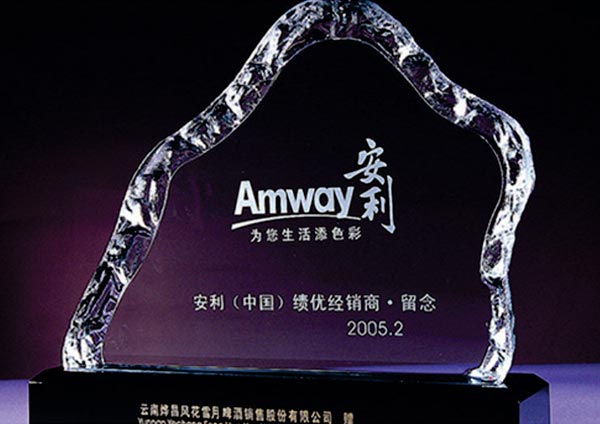

End Products

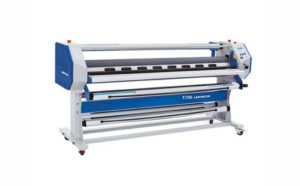

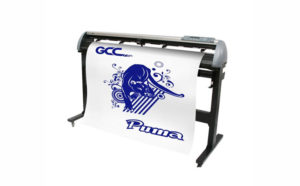

Looking For Similar Products?
